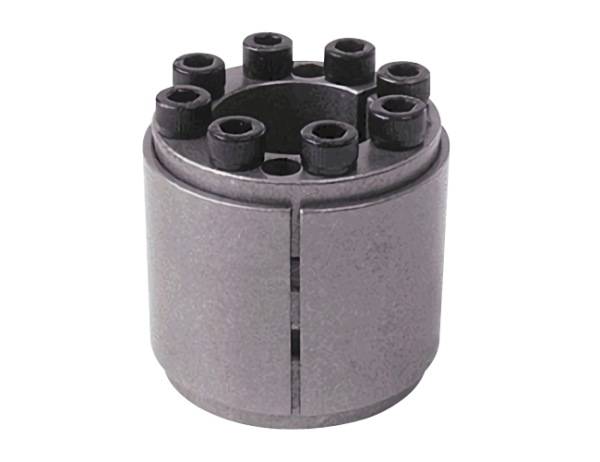

SWLE 200C Type

Attached file

견적/방문 요청(Request for quote/visit)

Contents

제품특징(Feature)

■ Adbeantages

- SWLE200-C can be used in connecting the shaft and boss when it requires a

  ultra hight transmissible torque.

- No axial shift while assembling.

- Required shaft : Ø 25 ~ Ø 100mm


■ Usage

- Large scale pulley

- Driver of each press


■ Features

- Material : DIN C45, JIS S45C, KS SM45C

- Hardness : HRC 20 ~ 25

- Surface treatment : Barrel grinding

제품사양(Specification)

SWLE200C
d X D		 Dimension Torque Nm Axial Thrust KN Screws Nm Surface Troque Nmm Weight
M L1 L2 L Nm KN Nm N/㎟ g
25×50 M6 46 40 52 900 70 17 90 410
30×55 M6 46 40 52 1100 70 17 90 460
35×60 M6 46 40 52 1600 90 17 110 510
40×65 M6 46 40 52 2400 120 17 110 560
50×80 M6 66 56 74 4250 160 17 100 1260
60×90 M6 66 56 74 6100 200 17 120 1440
70×110 M10 80 70 90 10800 320 83 130 2870
80×120 M10 80 70 90 14500 360 83 130 3180
90×130 M10 80 70 90 18100 390 83 130 3520
100×145 M12 102 91 114 26500 520 145 120 6700
