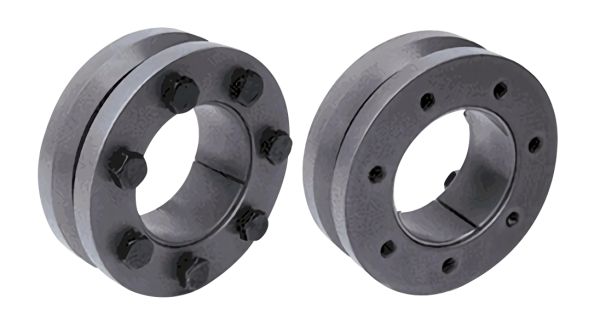

SWLE 200D Type

Attached file

견적/방문 요청(Request for quote/visit)

Contents

제품특징(Feature)

■ Features

- Material : DIN C45, JIS S45C, KS SM45C

- Hardness : HRC 20 ~ 25

- Surface treatment : Barrel grinding


■ Characteristics

- Medium-high torque

- No shaft-hub axial movement

- Limited installation time

- Quick dismantling


제품사양(Specification)

SWLE200
D d		 Dimension Shaft
diameter dw		 Torque
Mt		 Axial
Thrust
Fass.		 Tightening
screws
DIN 931-10.9		 Tightening
torque
Ms		 Contact
pressure
Pw		 Weight
(g)
D I L d1 e
mm mm mm mm mm mm mm Nm KN No. × type Nm N/㎟
14 38 7 11 23 2 11 30 6 4×M5 4 186 72
12 50 9
16 41 11 15 26 2 13 70 10 5×M5 4 130 117
14 90 13
24 50 14 19.5 36 2.75 19 170 25 6×M5 4 286 220
20 210 27
21 250 29
30 60 16 21.5 44 2.75 24 300 29 7×M5 4 233 302
25 340 31
26 380 33
36 72 18 23.5 52 2.75 28 440 50 5×M6 12 307 479
30 570 58
31 630 58
44 80 20 25.5 61 2.75 32 620 64 7×M6 12 317 604
35 780 74
36 860 77
50 90 22 27.5 70 2.75 38 940 79 8×M6 12 289 833
40 1160 86
42 1380 92
55 100 23 30.5 70 3.75 42 1160 79 8×M6 12 252 1110
45 1520 88
48 1880 97
62 110 23 30.5 86 3.75 48 1850 100 10×M6 12 279 1320
50 2200 111
52 2400 117
68 115 23 30.5 86 3.75 50 2000 97 10×M6 12 255 1370
55 2500 106
60 3150 120
75 138 25 32.5 100 3.75 55 2500 119 7×M8 30 273 2320
60 3200 137
65 3950 155
80 145 25 32.5 100 3.75 60 3200 124 7×M8 30 256 2520
65 3900 14
70 4600 158
85 155 30 39 114 4.5 65 4800 175 10×M8 30 285 3540
70 6100 195
75 7400 216
90 155 30 39 114 4.5 65 4750 170 10×M8 30 271 3350
70 6000 190
75 7250 210
100 170 34 44 124 5 70 6900 195 12×M8 30 258 4480
75 7500 220
80 9000 240
110 185 39 50 136 5.5 75 7200 229 9×M10 59 244 6010
80 9000 252
85 10800 262
115 188 39 50 141 5.5 80 7400 235 9×M10 59 234 5000
85 9200 259
90 11100 269
120 215 42 54 160 6 80 10600 285 12 × M10 59 277 9050
85 13300 314
90 14500 340
125 215 42 54 160 6 85 11000 296 12 × M10 59 266 8730
90 13000 324
95 15000 352
130 215 42 54 160 6 90 11300 304 12 × M10 59 255 8360
95 13300 333
100 15400 362
140 230 46 60.5 175 7.25 95 15100 367 10 x M12 100 264 10760
100 17600 396
105 20100 425
155 265 50 64.5 192 7.25 105 22000 447 12 x M12 100 263 15900
110 25000 478
115 28000 509
160 265 50 64.5 192 7.25 110 22600 460 12 x M12 100 254 15420
115 25700 490
120 28800 520
165 290 56 71 210 7.5 115 31000 595 8 x M16 250 277 22000
120 35000 630
125 39000 655
170 290 56 71 210 7.5 120 31900 610 8 x M16 100 268 21060
125 36000 640
130 40100 670
175 300 56 71 220 7.5 125 36000 605 8 x M16 250 261 22840
130 41000 639
135 45000 675
175 300 56 71 220 7.5 125 36000 605 8 x M16 250 261 22840
130 41000 639
135 45000 675
180 300 56 71 220 7.5 130 37000 800 8 x M16 250 253 31600
135 42200 840
140 46300 885
185 330 71 86 236 7.5 135 52000 778 10 x M16 250 244 39000
140 57000 819
145 62000 861
190 330 71 86 236 7.5 140 53500 800 10 x M16 250 237 37000
145 58700 840
150 63800 885
195 350 71 86 246 7.5 140 65000 933 12 x M16 250 277 41000
150 76000 1025
155 81500 1071
200 350 71 86 246 7.5 150 74000 990 12 x M16 250 270 41000
155 80000 1035
160 86000 1080
220 370 88 104 270 8 160 95000 1190 15 x M16 250 248 54000
165 102000 1239
170 110000 1290
240 405 92 109 295 8.5 170 120000 1464 12 x M20 490 272 67000
180 138000 1576
190 156000 1675
