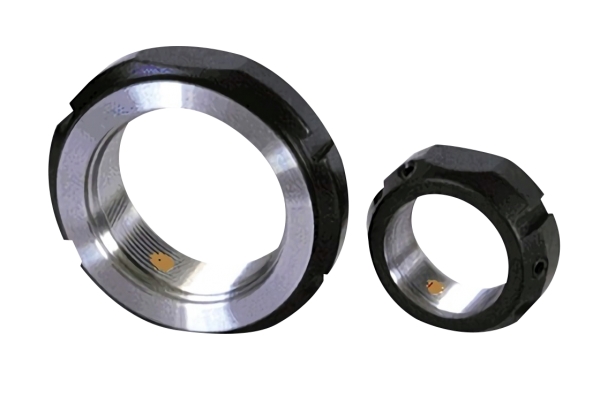

YHB 로그 너트

Related link

제품특징(Feature) 제품사양(Specification)

■ Features

- Material : DIN C45, JIS S45C, KS SM45C

- Hardness : HRC 20 ~ 25

- Nut Grade : Precision class

- Squarness of Nut Face : ⊥0.002~0.015

■ Advantages

- Three locking pins located in equal intervals enable the nut to be

assembled with the shaft at appropriate angle and adjus the deviation properly

- No need for a lock washer or fluting of shaft key

PART NO	THREAD & PITCH	Dimension										Axial Load (KN)	Weight (g)
PART NO	THREAD & PITCH	d1	b2	d3	d4	B	g	t	M	m	Torque (Nm)	Axial Load (KN)	Weight (g)
SLN 02	M 15 × 1	26	33	25	16	16	4	2.5	30	M5	4.5	60	62
SLN 03	M 17 × 1	29	37	30	18	18	5	2.5	34	M6	8	80	91
SLN 04	M 20 × 1	32	40	32	21	18	5	2.5	36	M6	8	90	100
SLN 05	M 25 × 1.5	36	44	36	26	20	5	2.5	41	M6	8	130	127
SLN 06	M 30 × 1.5	41	49	41	31	20	5	2.5	46	M6	8	160	146
SLN 07	M 35 × 1.5	46	54	46	36	22	5	2.5	50	M6	8	190	185
SLN 08	M 40 × 1.5	56	65	56	41	22	6	3	60	M6	8	210	300
SLN 09	M 45 × 1.5	61	70	61	47	22	6	3	65	M6	8	240	320
SLN 10	M 50 × 1.5	65	75	65	51	25	7	3	70	M6	8	300	394
SLN 11	M 55 × 2	74	85	75	57	25	7	3	80	M8	18	340	530
SLN 12	M 60× 2	78	90	79	62	26	8	4	85	M8	18	380	584
SLN 13	M 65 × 2	83	95	84	67	28	8	4	90	M8	18	460	682
SLN 14	M 70 × 2	88	100	89	72	28	8	4	95	M8	18	490	728
SLN 15	M 75 × 2	93	105	94	77	28	8	4	100	M8	18	520	773
SLN 16	M 80 × 2	98	110	96	82	32	8	4	100	M8	18	620	900
SLN 17	M 85 × 2	107	120	106	87	32	10	4	110	M10	35	650	1140
SLN 18	M 90 × 2	112	125	111	92	32	10	4	115	M10	35	680	1220
SLN 19	M 95 × 2	117	130	116	97	32	10	4	120	M10	35	710	1270
SLN 20	M 100 × 2	122	135	121	102	32	10	4	125	M10	35	740	1330
SLN 20	M 100 × 2	122	135	121	102	32	10	4	125	M10	35	740	1330
SLN 22	M 110 × 2	132	145	130	112	32	10	4	135	M10	35	800	1460
SLN 24	M 120 × 2	142	155	140	122	32	10	4	145	M10	35	860	1560
SLN 26	M 130 × 2	152	165	150	132	32	12	5	155	M10	35	920	1670
SLN 28	M 140 × 2	162	175	160	142	32	14	6	165	M10	35	980	1760
SLN 30	M 150 × 2	172	185	170	152	32	14	6	175	M10	35	1040	1890
SLN 32	M 160 × 3	182	195	180	162	32	14	6		M10	35	1100	2050
SLN 34	M 170 × 3	192	205	190	172	32	14	6		M10	35	1160	2170
SLN 36	M 180 × 3	202	215	200	182	32	16	7		M10	35	1220	2330
SLN 38	M 190 × 3	212	225	210	192	32	16	7		M10	35	1280	2370
SLN 40	M 200 × 3	222	235	220	202	32	18	8		M10	35	1340	2550
