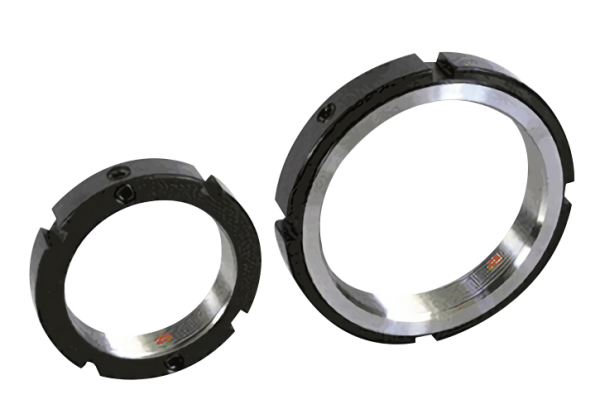

ZMV Type

견적/방문 요청(Request for quote/visit)

Contents

제품특징(Feature)

■ Features

  - Material : DIN C45, JIS S45C, KS SM45C

  - Hardness : HRC 20 ~ 25

  - Nut Grade : Precision class

  - Squarness of Nut Face : ⊥0.002~0.015


■ Advantages

Adapt it when it is impossibel to built up toward circumference direction


제품사양(Specification)

PART NO THREAD & PITCH Dimension Axial Load
(KN)		 Set Screw
(Nm)		 Weight
(g)
øD B g t d1 d2 d3 c m
ZMV 17 M 17 × 1 28 15 4 2.5 21 22.5 3.3 10 M4 49 3.5 38
ZMV 20 M 20 × 1 32 15 4 3 25 26 3.3 10 M4 55 3.5 49
ZMV 25 M 25 × 1.5 38 17 5 3 31 31.5 4.2 11 M5 87 4.5 76
ZMV 30 M 30 × 1.5 45 17 5 3 38 37.5 4.2 11 M5 110 4.5 107
ZMV 35 M 35 × 1.5 52 17 5 3 45 43.5 4.2 11 M5 120 4.5 144
ZMV 40 M 40 × 1.5 58 19 6 3 50 49 5 12 M6 150 8 191
ZMV 45 M 45 × 1.5 65 19 6 3 56 55 5 12 M6 170 8 241
ZMV 50 M 50 × 1.5 70 19 6 3 61 60 5 12 M6 180 8 268
ZMV 55 M 55 × 2 75 21 7 4 66 65 5 13 M6 250 8 318
ZMV 60 M 60 × 2 80 21 7 4 70 70 5 13 M6 270 8 344
ZMV 65 M 65× 2 85 21 7 4 76 75 5 13 M6 290 8 370
ZMV 70 M 70 × 2 92 23 8 4 82 81 6.2 14 M8 350 18 480
ZMV 75 M 75 × 2 98 23 8 4 87 87 6.2 14 M8 370 18 540
ZMV 80 M 80 × 2 105 23 8 4 92 93 6.2 14 M8 390 18 632
ZMV 85 M 85 × 2 110 23 8 4 99 98 6.2 14 M8 400 18 666
ZMV 90 M 90 × 2 120 25 10 4 105 105 6.2 15 M8 470 18 936
ZMV 95 M 95 × 2 125 25 10 4 110 110 6.2 15 M8 490 18 983
ZMV 100 M 100 × 2 130 25 10 4 116 115 6.2 15 M8 510 18 1030
ZMV 105 M 105 × 2 140 27 12 5 122 123 7.9 16 M10 560 35 1370
ZMV 110 M 110 × 2 145 27 12 5 129 128 7.9 16 M10 600 35 1430
ZMV 120 M 120 × 2 155 29 12 5 136 138 7.9 17 M10 710 35 1660
ZMV 130 M 130 × 2 165 29 12 5 147 148 7.9 17 M10 760 35 1790
ZMV 140 M 140 × 2 180 31 14 6 156 160 9.6 18 M12 880 60 2870
ZMV 150 M 150 × 2 195 31 14 6 167 173 9.6 18 M12 930 60 3000
ZMV 160 M 160 × 3 210 33 16 7 178 185 9.6 19 M12 980 60 3680
ZMV 170 M 170 × 3 220 33 16 7 189 195 9.6 19 M12 1130 60 3860
ZMV 180 M 180 × 3 230 35 18 8 199 205 9.6 20 M12 1300 60 4280
ZMV 190 M 190 × 3 240 35 18 8 210 215 9.6 20 M12 1470 60 4500
ZMV 200 M 200 × 3 250 37 18 8 222 225 9.6 21 M12 1600 60 4980
