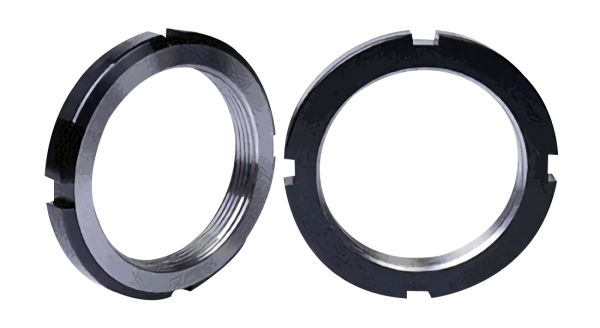

AN Type

견적/방문 요청(Request for quote/visit)

Contents

제품특징(Feature)

■ Features

- Material : DIN C45, JIS S45C, KS SM45C


- Nut Grade : Precision class


제품사양(Specification)

PART NO THREAD & PITCH Dimension
d1 b2 h g t d3 B Weight(g)
AN 00 M 10 × 0.75 18 13.5 14 3 2 10.5 4 4
AN 01 M 12× 1 22 17 18 3 2 12.5 4 7
AN 02 M 15× 1 25 21 21 4 2 15.5 5 10
AN 03 M 17× 1 28 24 24 4 2 17.5 5 13
AN 04 M 20× 1 32 26 28 4 2 20.5 6 20
AN 05 M 25× 1.5 38 32 34 5 2 25.8 7 31
AN 06 M 30× 1.5 45 38 41 5 2 30.8 7 44
AN 07 M 35× 1.5 52 44 48 5 2 35.8 8 65
AN 08 M 40× 1.5 58 50 53 6 2.5 40.8 9 90
AN 09 M 45× 1.5 65 56 60 6 2.5 45.8 10 122
AN 10 M 50× 1.5 70 61 65 6 2.5 50.8 11 152
AN 11 M 55× 2 75 67 69 7 3 56 11 166
AN 12 M 60× 2 80 73 74 7 3 61 11 179
AN 13 M 65× 2 85 79 79 7 3 66 12 212
AN 14 M 70× 2 92 85 85 8 3.5 71 12 243
AN 15 M 75× 2 98 90 91 8 3.5 76 13 306
AN 16 M 80× 2 105 95 98 8 3.5 81 15 407
AN 17 M 85× 2 110 102 103 8 3.5 86 16 467
AN 18 M 90× 2 120 108 112 10 4 91 16 597
AN 19 M 95× 2 125 113 117 10 4 96 17 659
AN 20 M 100× 2 130 120 122 10 4 101 18 727
AN 21 M 105× 2 140 126 130 12 5 106 18 877
AN 22 M 110× 2 145 133 135 12 5 111 19 987
AN 23 M 115× 2 150 137 140 12 5 116 19 1030
AN 24 M 120× 2 155 138 145 12 5 121 20 1150
AN 25 M 125× 2 160 148 150 12 5 126 21 1240
AN 26 M 130× 2 165 149 155 12 5 131 21 1270
AN 27 M 135× 2 175 160 163 14 6 136 22 1550
AN 28 M 140× 2 180 160 168 14 6 141 22 1610
AN 29 M 145× 2 190 172 178 14 6 146 24 1850
AN 30 M 150× 2 195 171 183 14 6 151 24 1940
AN 31 M 155× 2 200 182 186 16 7 156.5 25 2100
AN 32 M 160× 3 210 182 196 16 7 161.5 25 2390
AN 33 M 165× 3 210 193 196 16 7 166.5 26 2500
AN 34 M 170× 3 220 193 206 16 7 171.5 26 2840
AN 36 M 180× 3 230 203 214 18 8 181.5 27 2860
AN 38 M 190× 3 240 214 224 18 8 191.5 28 3300
AN 40 M 200× 3 250 226 234 18 8 201.5 29 3760
