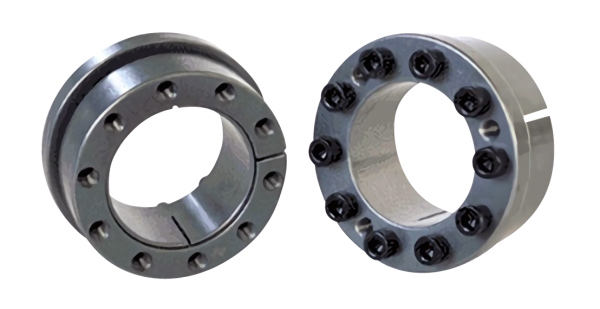

SWLE 200B Type

Attached file

견적/방문 요청(Request for quote/visit)

Contents

제품특징(Feature)

■ Adbeantages

- SWLE200-B applies to high transmissible torque and precise positioning

- No axial shift while assembling

- Required shaft : Ø 8 ~ Ø 100mm


■ Usage

- pulley, gear, flywheel, cam, lever etc.


■ Features

- Material : DIN C45, JIS S45C, KS SM45C

- Hardness : HRC 20 ~ 25

- Surface treatment : Barrel grinding


제품사양(Specification)

SWLE200B
d X D		 Dimension Champ Bolts Transmissioniable Surface Pressure Weight
(g)
L L3 L2 L1 D D1 Holes Thread Torque Torque
Mt(kgf-m)		 Axial Load
Pax(kgf)		 Shaft
kgf/㎟		 Bass
kgf/㎟
8×22 21 17 13 10 22 25 3 M4×15 0.39 1.8 470 27.9 7.1 39
9×23 21 17 13 10 23 26 3 M4×15 0.39 2.1 470 24.8 6.8 46
10×24 21 17 13 10 24 27 4 M4×15 0.39 3 620 30 8.7 45
11×25 21 17 13 10 25 28 4 M4×15 0.39 3.4 620 27 8.4 48
12×26 21 17 13 10 26 29 5 M4×15 0.39 4.7 780 31 10 49
13×27 21 17 13 10 27 30 5 M4×15 0.39 5 750 28.6 9.7 60
14×31 26 21 16 12.5 31 34 4 M5×15 0.8 7 1000 26.6 8.7 97
15×32 26 21 16 12.5 32 35 4 M5×15 0.8 7.5 1000 24.8 8.4 101
16×33 26 21 16 12.5 33 36 4 M5×15 0.8 8 1000 23.2 8.1 104
17×34 26 21 16 12.5 34 37 5 M5×15 0.8 10.5 1250 27.3 9.9 109
18×35 26 21 16 12.5 35 38 5 M5×15 0.8 11 1250 25.8 9.6 113
19×47 38 32 24 20 47 53 6 M6×22 1.6 29 3000 29 9.4 346
20×47 38 32 24 20 47 53 6 M6×22 1.6 30 3000 27.5 9.4 338
22×47 38 32 24 20 47 53 6 M6×22 1.6 33 3000 25 9.4 324
24×50 38 32 24 20 50 56 7 M6×22 1.6 42 3450 26.7 10.3 358
25×50 38 32 24 20 50 56 7 M6×22 1.6 44 3450 25.7 10.3 307
28×55 38 32 24 20 55 62 7 M6×22 1.6 48 3450 22.9 9.4 423
30×55 38 32 24 20 55 62 7 M6×22 1.6 52 3450 21.4 9.4 430
32×60 38 32 24 20 60 68 9 M6×22 1.6 71 4450 25.8 11 483
35×60 38 32 24 20 60 68 9 M6×22 1.6 78 4450 23.6 11 450
38×65 38 32 24 20 65 73 9 M6×22 1.6 85 4450 21.7 10 508
40×65 38 32 24 20 65 73 9 M6×22 1.6 90 4450 20.6 10.2 505
42×75 48 40 29 24 75 83 9 M8×30 3.9 173 8200 30.5 13.5 930
45×75 48 40 29 24 75 83 9 M8×30 3.9 185 8200 28.4 13.5 880
48×80 48 40 29 24 80 88 9 M8×30 3.9 198 8200 26.7 12.7 990
50×80 48 40 29 24 80 88 9 M8×30 3.9 206 8200 25.6 12.7 950
55×85 48 40 29 24 85 94 10 M8×30 3.9 252 9100 25.8 13.2 1050
60×90 48 40 29 24 90 99 10 M8×30 3.9 275 9100 23.7 12.5 1120
65×95 48 40 29 24 95 104 12 M8×30 3.9 357 11000 26.3 14.2 1190
70×110 62 52 37 30 110 119 10 M10×40 7.5 504 14400 26.4 12.9 2240
75×115 62 52 37 30 115 124 10 M10×40 7.5 540 14400 24.6 12.3 2360
80×120 62 52 37 30 120 129 10 M10×40 7.5 575 14400 23 11.8 2400
85×125 62 52 37 30 125 134 12 M10×40 7.5 734 17000 26 13.6 2480
90×130 62 52 37 30 130 139 12 M10×40 7.5 775 17000 24.6 13 2730
95×135 62 52 37 30 135 144 14 M10×40 7.5 955 20000 27.2 14.7 2870
100×145 74 64 46 39 145 154 15 M10×40 7.5 1080 21000 19.9 11.3 4160
